My solar energy and Tesla Powerwall 2 setup

Saving the planet a little bit while trying out new technology is fantastic, and in the end, it will save me also some money. When building my house last year, I invested in solar energy. The sun delivers me free electricity during the day, especially around noon, but I use it mainly at the end of the day and the beginning of the evening. Most of my solar energy goes to the public energy grid, and I need to repurchase it in the evening. This buying back makes no send to me. I like to use my own ‘free’ solar energy, so I need a way to store it. After some research, I selected the Tesla Powerwall 2 for my energy storage, not only for the best capacity, but my energy company (Eneco) had a good deal (2.500,- euro cashback). In the Netherlands, I can also get the tax back I paid for the solar and Tesla Powerwall 2 energy installation, an extra savings of 21%. The investment is still high, but after 5 or 6 years, it should be making money.

Hardware

My solar and energy installation exist out of different systems working closely together. From the solar panels, converter to the Tesla Gateway and Tesla Powerwall 2. The gateway needs the Internet for full functionality, it comes with a mobile connection, but that is more a fallback scenario. I placed the Tesla Powerwall 2 in the garage because it can make some low zooming noise if it is under load.

SystemBrandTypeNotes
Solar panelsJa SolarJAM6K60-280-BK-358 x 280Wp = 2240 Wp
ConverterGrowatt2000-SDC to AC
GatewayTeslaGatewayConnects to the Internet
BatteryTeslaPowerwall 213.5 kWh

Installation

The Tesla Powerwall 2 arrived from the California factory in a big box and placed against the wall in my garage. There are two cables connected to the Powerwall, one for the communication between the Powerwall and the Gateway, and the second one for the power itself. It took the energy company around 6 hours to complete the setup with the Powerwall.

/my-solar-energy-and-tesla-powerwall-2-setup/installation.jpg

Software

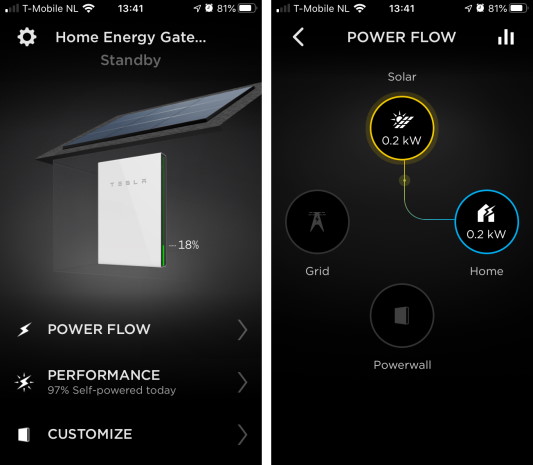

To know what is going on with my energy installation, I use the Tesla App (it is the same as for the cars). In the Tesla App, I can see what my solar panels a producing, my housing is consuming and if the battery is charging. I can also use the web version when at home, but the information is limited, but it gives me a handy Restful API.

/my-solar-energy-and-tesla-powerwall-2-setup/tesla_app.jpg

Performance

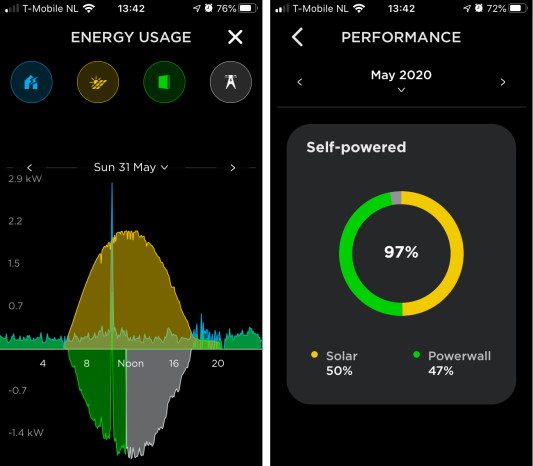

The combination of the solar and the Powerwall gives me an excellent performance. In the table below, you can see the performance I had in the year 2020.

MonthSolarPowerwallTotal
January 202010%5%15%
February 202018%10%28%
March 202032%37%69%
April 202041%54%95%
May 202044%53%97%
June 202044%48%92%
July 202042%44%86%
August 202041%44%85%
Setpember 202033%35%68%
October 202017%6%23%
November 202014%8%22%
December 20207%2%9%

and also by year:

YearSolarPowerwallTotal
201931%31%62%
202031%26%57%
202129%24%53%
202215%18%33%
202316%43%59%

/my-solar-energy-and-tesla-powerwall-2-setup/usage_performance.jpg

Conclusion

I’m pleased with the setup and performance, but they’re also some minor downsides I did not know before. In the Netherlands, the Tesla Powerwall 2 does not have all the functionality I had seen in other countries. Like by losing grid electricity, the Powerwall will not take over as a backup. Also, the Powerwall can’t be used or buy cheap electricity at night from the grid.
